Refractory Bricks vs. Castable vs. Ceramic Fiber:
Which to Use Where

Nobody actually chooses between three materials. They choose three times.

The question "refractory bricks vs. castable vs. ceramic fiber" sounds like it has one winner. It doesn't. Each of the three was engineered to solve a different problem, and the fastest way to waste money on a furnace lining is to pick a favourite and use it everywhere.

A refractory brick is a dense, factory-fired block built to resist heat, slag, abrasion, and load. A castable is a refractory concrete you mix and pour on site to form any shape. Ceramic fiber is a lightweight wool of spun refractory strands that insulates brilliantly and weighs almost nothing. Put them in a ring and ask which is "best," and the honest answer is: best at what, and in which part of the wall?

This guide compares all three across the parameters that actually decide a lining — temperature ceiling, mechanical and chemical resistance, install time, thermal mass, and cost — then gives you a decision method and a scenario table you can specify from. (Spoiler for the impatient: the correct answer is usually "two of them, in layers." We will get there.)

Three materials, three completely different jobs

Refractory brick — the durable, predictable workhorse

Refractory bricks are pre-formed, kiln-fired blocks — fireclay, high-alumina, silica, magnesia, and specialty grades. Because they are fired under controlled factory conditions, their properties are consistent and their performance is predictable. Bricks lead on slag resistance, abrasion resistance, structural strength, and long service life. Their weakness is that dense brick is a poor insulator and heavy, and they only suit regular geometries. For the full picture on grades and applications, see our refractory bricks guide.

Castable refractory — the shape-shifter

Castable refractory is essentially high-temperature concrete: refractory aggregate plus a binder that you mix with water and pour, pump, or gun into place. Its superpower is geometry — burner blocks, furnace roofs, elbows, wear pads, and any shape a brick can't cover without cutting. It bonds into a joint-free monolith, which removes the weak seams that brick joints create. The trade-offs: strength depends heavily on correct mixing and placement, and it needs curing plus a slow, controlled dry-out before it can be fired.

Ceramic fiber — the featherweight insulator

Ceramic fiber is spun or blown alumina-silica wool, supplied as blanket, board, or pre-formed modules. It is the insulation champion: extremely low thermal conductivity and a heat capacity roughly one-tenth that of dense brick or castable (L4, industry figure). That low thermal mass makes it the energy winner in furnaces that cycle — there is far less lining to reheat on every start-up. What it cannot do is take a beating: it has almost no mechanical strength, erodes under high gas velocity, and does not tolerate slag or molten metal contact.

Head-to-head: the master comparison table

This is the single table most buyers are looking for. Values are typical ranges for common industrial grades — specific products vary, and the numbers below are field-level guidance (L4) rather than a substitute for a data sheet. Where a cell says "depends," installation quality is the deciding factor.

The three-question lining decision

You do not need a materials degree to narrow this down. You need three answers, asked in order. We call it the Shape–Stress–Cycle method, and it eliminates wrong materials faster than any spec sheet.

Question 1 — What is the shape?

If the surface is a regular wall, arch, or floor, brick is on the table. If it is complex, curved, or full of penetrations — burner throats, dampers, launder channels — castable moves to the front because it forms to anything. Ceramic fiber wraps irregular surfaces too, but only survives if the next two answers allow it.

Question 2 — What stress hits the hot face?

Now rule materials out. Slag, molten metal, abrasion, or mechanical impact at the hot face eliminates ceramic fiber immediately — it has no defence against any of them. Heavy structural load favours brick. A clean, still, or gently moving hot atmosphere with none of those stresses is exactly where fiber earns its keep.

Question 3 — How often does it cycle?

A furnace that heats and cools daily pays the thermal-mass penalty of brick and castable on every cycle. Here, low-mass ceramic fiber (within its temperature limit) can cut fuel use noticeably. A furnace that runs continuously for months pays that penalty once, and brick's durability usually wins the long game.

Which to use where — the scenario matrix

Run your situation down the left column. The recommendation assumes the hot face; backup insulation is discussed in the next section. Recommendations are field guidance (L4) and should be confirmed against your exact temperature and chemistry.

The composite lining truth: you rarely pick just one

Here is the part the "vs." framing hides. Walk up to almost any well-designed industrial furnace and cut through the wall, and you will not find one material. You will find a stack — because the hot face and the steel shell want opposite things.

The hot face needs chemical and mechanical toughness. The shell needs to stay cool and lose as little heat as possible. No single material does both well. So the standard solution is a composite lining:

• Working layer (hot face): dense refractory brick or dense castable — takes the temperature, slag, abrasion, and load.
• Backup / insulating layer: insulating firebrick or lightweight castable — carries temperature down without adding much shell heat.
• Shell layer: ceramic fiber blanket or board against the steel — minimises heat loss and keeps shell temperature safe, at almost no weight.

This is why the head-to-head table has no single winning column. Brick wins the working layer. Fiber wins the shell layer. Castable wins wherever the shape is awkward at either depth. A furnace lined this way gets the durability of brick, the insulation of fiber, and the geometry freedom of castable — each doing the one job it is best at. (The materials stopped competing the moment someone stacked them. We think that is the whole lesson.)

For insulation specifically — where fiber and lightweight brick overlap — our insulating refractory bricks guide covers when a rigid insulating brick beats a fiber blanket in the backup position.

Cost and install reality — the number that isn't on the quote

Material price per tonne is the least useful number in this comparison, because the three materials fail differently and install differently. The cost that matters is installed cost plus downtime plus service life.

Ceramic fiber — cheapest to install, shortest at the extreme

Lightweight, no curing, no masonry skill — fiber is usually the fastest and lowest-labour lining to install per square metre. Its cost problem shows up only if you push it near its temperature limit or into a stress it can't handle, where it shrinks or erodes and needs replacing sooner.

Brick — moderate material cost, skilled labour, long life

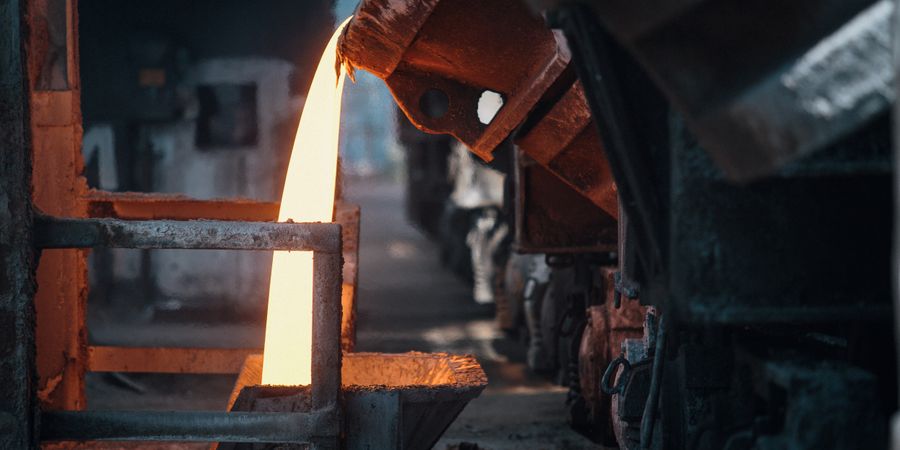

Brick material cost is moderate and its install is fast for simple walls but needs skilled masons for arches and complex shapes. Its payback is service life: a correctly specified brick hot face routinely outlasts the alternatives in abrasive or slagging service, so its cost-per-campaign is often the lowest despite a higher upfront figure.

Castable — low material cost, high labour and downtime

Castable can have the lowest material cost per tonne, especially for complex shapes, but it carries the highest hidden cost: mixing, forming, curing, and a controlled dry-out that can hold a furnace out of service for 24–48 hours or more (L4) before firing. On a planned reline that is fine. On an emergency repair, that downtime is the real bill.

Five ways the wrong choice fails

Each of these is a real pattern, and each traces back to picking a material for the wrong reason — convenience, price, or habit — instead of the three questions above.

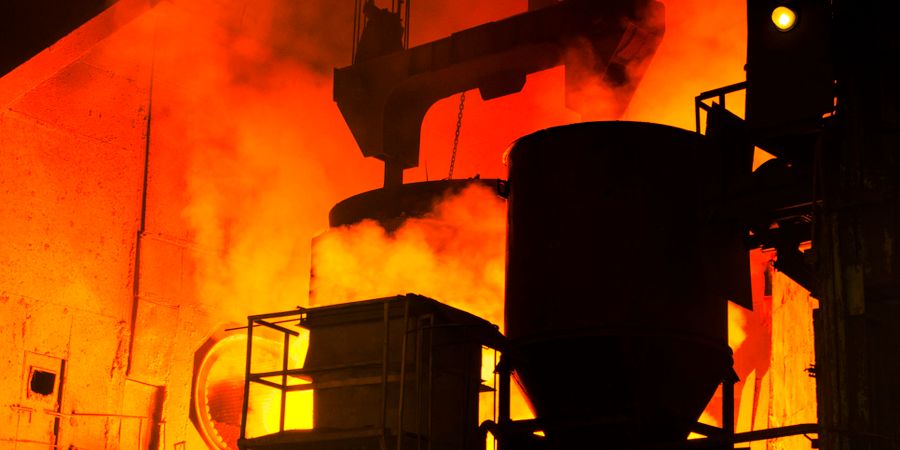

• Ceramic fiber at a slagging or abrasive hot face. The fiber looks fine on install and is gone in weeks. Fiber has no defence against slag, molten contact, or high gas velocity. If any of those touch the hot face, fiber belongs in the backup layer or nowhere.
• All-castable furnace to avoid bricklaying. The quote is simple; the operation is not. Repeated slow dry-outs, longer downtime, and a hot face a brick would have out-survived. Castable is a shape solution, not a default.
• Dense brick where insulation was the actual need. Dense fired brick is a poor insulator. Using it as a shell layer wastes fuel and drives shell temperature up. That job belongs to insulating brick or fiber.
• Castable fired before it is dry. Trapped water flashes to steam and spalls the lining — sometimes explosively. The controlled dry-out is not optional, and rushing it destroys the exact monolith you paid for.
• Fiber pushed to its classification temperature as a service temperature. The rated number is a ceiling, not a set point. Run fiber near its limit and it shrinks, opening gaps and heat paths. Service temperature should sit well below the classification.
